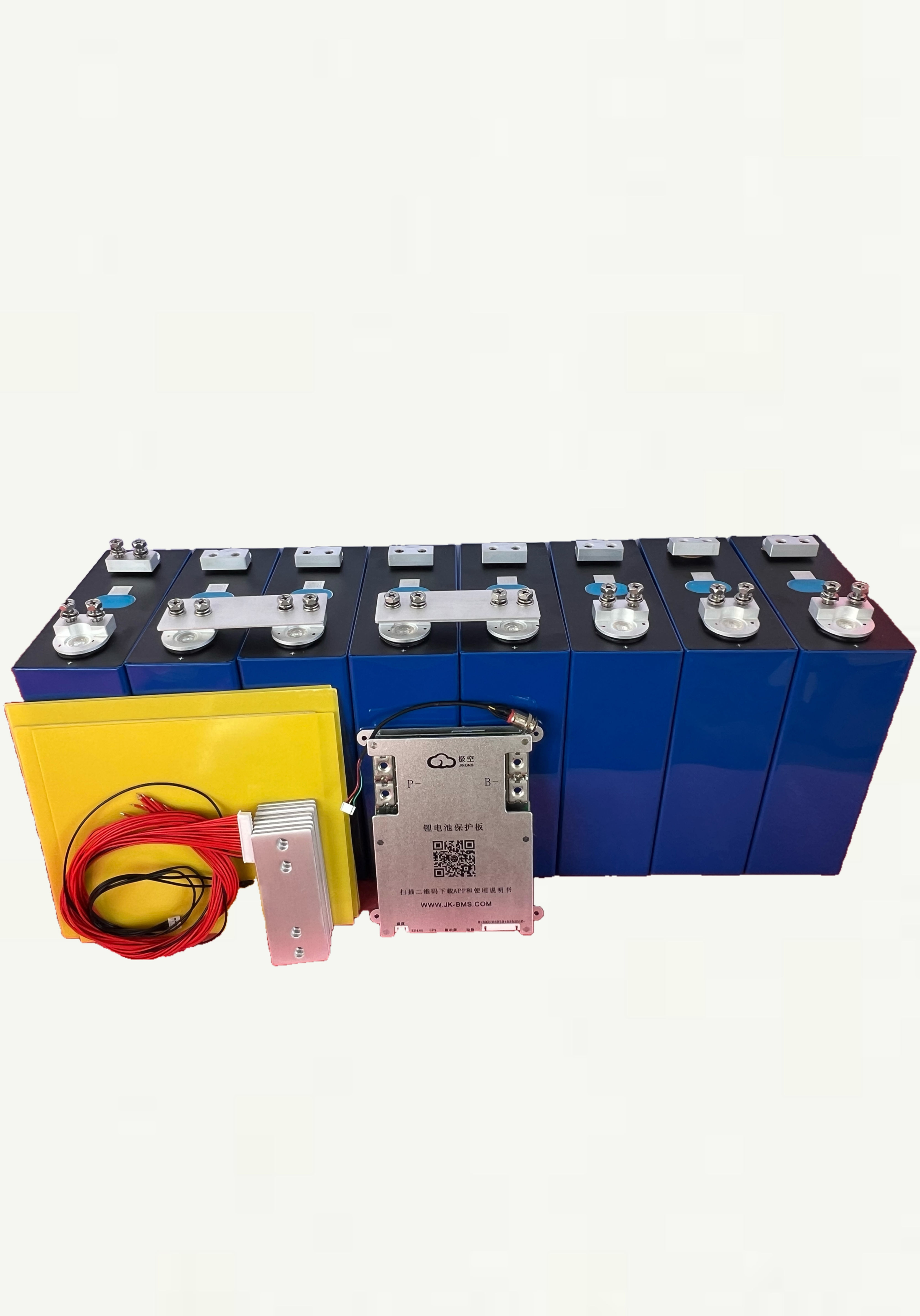

 EVE 12-48V LF304 Lifepo4 Lithium iron phosphate Battery KIT BMS Auto grade

EVE 12-48V LF304 Lifepo4 Lithium iron phosphate Battery KIT BMS Auto grade

Rating is 5.0 out of five stars based on 3 reviews

Lifepo4 Lithium iron Battery LF304 3.2V Auto grade cells NEW 12-48V 4-48KWH Phosphate.

Note: the terminals are M6 studs if you require differently please let us know

Our cells are genuine grade Auto grade cells directly from the EVE factory we buy them by shipping container loads.

Cells are with all the documents like test reports, MSDS, UN38.4, IEC 62619 certificates all documents everything is available on request.

QLD Aus stock 2-10 days delivery time.

Cells are Auto grade.✅

Model: LF304

Brand: EVE

6,000 cycle life.

Tested Cell capacity: 315

Nominal: Voltage 3.2V

Internal resistance: ≤0.25mΩ

Weight: 5500 ± 100g

Dimensions: 72*174*209mm

Charge cut-off Voltage: 3.65V

Standard charge current: 0.5C

Discharge cut-off Voltage: 2.5V

Standard discharge current: 0.5C

Continuous discharge current: 1C

Peak discharge current (30s) : 2C

Charge Temperature: 0°C ~ 45°C

Discharge Temperature: -20°C ~ 60°C

Storage: 6months @-20~35°C

Cycle life: 6000+

Cells have M6 terminals.

✅5 years warranty.

The 12V LF304 KIT incudes :

4X 3.2V LF304 cells A+ grade.

1X JK bms 4-8S 200A 1A with wake switch and Bluetooth.

4X Epoxy sheets.

8x Nuts.

4X busbars.

Amp-hours: 315

Volts: 12.8

KHW: 4

The 24V LF304 KIT incudes:

8X 3.2V LF304 cells A+ grade.

1X JK bms 4-8S 200A 1A with wake switch and Bluetooth.

8X Epoxy sheets.

16X Nuts.

8X busbars.

Amp-hours: 315

Volts: 25.6

KHW: 8

The 36V LF304 KIT incudes:

12X 3.2V LF304 cells A+ grade.

1X JK bms 8-20S 200A 2A with wake switch and Bluetooth.

12X Epoxy sheets.

24X Nuts

12X busbars.

Amp-hours: 315

Volts: 38.4

KHW: 12

The 48V LF304 kit incudes:

16X 3.2V LF304 cells A+ grade.

1X JK bms 8-20S 200A 2A with wake switch and Bluetooth.

16X Epoxy sheets.

32X Nuts

16X busbars.

Amp-hours: 315

Volts: 48

KHW: 16.1

The 2X 48V LF304 kit incudes:

32X 3.2V LF304 cells A+ grade.

2X JK bms 8-20S 200A 2A with wake switch and Bluetooth.

32X Epoxy sheets.

64X Nuts

32X busbars.

Amp-hours: 630

Volts: 48

KHW: 32

The 3X 48V LF304 kit incudes:

48X 3.2V LF304 cells A+ grade.

3X JK bms 8-20S 200A 2A with wake switch and Bluetooth.

48X Epoxy sheets.

96X Nuts

48X busbars.

Amp-hours: 945

Volts: 48

KHW: 48

Some remote areas may cost extra for shipping,

    AU$961.00Price
